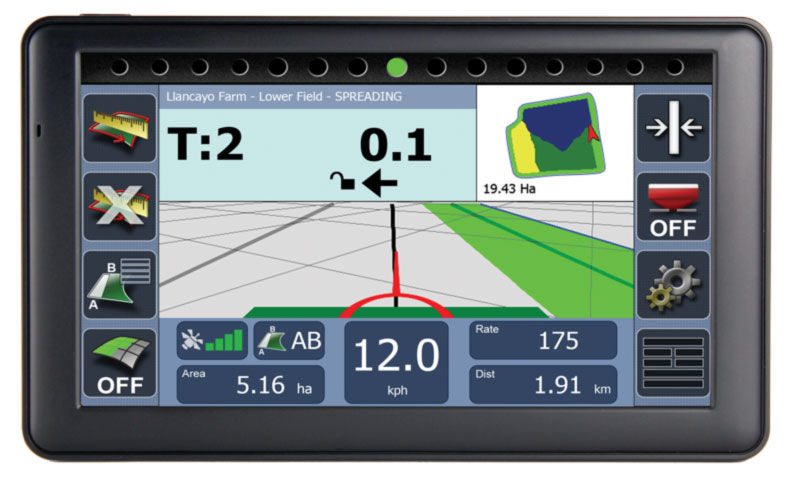

BlackBox Marine Variable Rate Kit
The BlackBox Marine Variable Rate Kit comes preloaded with the Section Control and VRT software on top of the Guidance Kit. The software allows the GPS system to be connected to a multitude of different manufacturer controllers to perform operations including Variable rate application using maps, Automatic Shut Off and Spreader Section Control. The GPS Kit is supplied with the cable for your make/model of controller, ready to connect and use.
- Android OS Application
- Area Measurement
- Terrain Compensation
- Field boundary measurement and auto detection
- Field recognition
- Store Farm/Fields and Boundaries
- Straight and Curved 3D Guidance modes
- Headland Guidance
- Headland Warning
- Pause and Resume multiple jobs
- Job Recording
- Automatic Recording Option
- Variable Rate Application
- Uses Shapefile, BBA and PWxml map file formats
- Automatic Shut Off
- Dynamic Rate Adjust
- Spreader Section Control
- Headland on/off Control
- Sprayer Section Control
- Synchronising of Data (3G and WiFi)
- Tracking (3G and WiFi)
- Operates from 12v vehicle power supply
- USB port for charging device
- Upgradable
Receiver (Standard R1) 10hz DGPS (WAAS, EGNOS and GLONASS) Terrain Compensator 2 Axis Power Input 8-16 VDC input USB charge port 5V 2A Communication Ports 1x Can, 2x RS232, 1x USB Control I/O 4x PWM, 1x Internal Relay, 1x Motor Controller Sensor I/O 1x Pulse, 1x Switch, 1x Analogue 0-15v Waterproof Level IP67 Dimensions 135 x 130 x 39 mm Weight 275g Standard 7” Android Tablet
A light weight Android tablet with bright 7” LCD display that is supplied as standard with the base BlackBox kits. Supplied with all the accessories required to mount to your vehicle and charge the internal battery.
Features
- 7” Capacitive Touch Screen
- 800 x 480 Resolution
- 4 Core 1.5GHz Processor
- 768 MB Ram
- 16 GB Internal Storage
- Rechargable Li-Ion Battery
9” Android Tablet
A large 9” display Android tablet for easy viewing and accessibility. Supplied with all the accessories required to mount to your vehicle and charge the internal battery.
Features
- 9” Capacitive Touch Screen
- 800 x 480 Resolution
- 4 Core 1.5GHz Processor
- 768 MB Ram
- 16 GB Internal Storage
- Rechargable Li-Ion Battery
5” Waterproof Android Tablet
A compact water proof Android device perfect for using with cab-less vehicles and Quad bikes. Supplied with all the accessories required to mount to your vehicle and charge the internal battery.
Features
- 5” Capacitive Touch Screen
- 854 x 480 Resolution
- IPX7 Waterproof
- 4 Core 1.3GHz Processor
- 1 GB Ram
- 16 GB Internal Storage
- Rechargable Li-Ion Battery
8” Tough Waterproof Android Tablet
A large display high performance Android tablet which incorporates a toughened glass screen as well as being water and dustproof. Supplied with all the accessories required to mount to your vehicle and charge the internal battery.
Features
- 8” Toughened Gorilla Glass Touch Screen
- 1280 x 800 Resolution
- IP67 Waterproof
- 8 Core 1.4GHz Processor
- 3 GB Ram
- 32 GB Internal Storage
- Rechargable Li-Ion Battery
Enhanced
The enhanced GPS package uses the standard R1 receiver and G2 hi-gain antenna. The improved filtering in the G2 antenna helps increase the overall signal accuracy and is recommended for more precise field work.
R1 + G2 = up to 15cm pass to pass accuracy
Advanced
The advanced GPS package uses the R2 receiver and G2 hi-gain antenna. The R2 is a high precision receiver that adds improved accuracy to the standard R1 and has an autonomous correction mode that ensures the best possible performance without paying for a subscription in areas with no free differential correction service e.g. Southern Hemisphere.
R2 + G2 = up to 10cm pass to pass accuracy
VRT, Automatic Shut Off, Dynamic Rate Adjust
Amazone (Seed and Fertiliser) - Amados+, Amatron+, Amatron II, Amatron 3
APV PS (KRM) Slug pelleter
Bogballe - 2003w, Uniq, Icon, Zurf
Bredal - LH500-, TeeJet 500
Dickey John
Gustrower - TeeJet 500 (8-way telephone socket)
Hardi – 5500, 6500
Kuhn/Rauch – Quantron A/E/E2, CCI 100
Kverneland/Vicon – Focus 2, Tellus Isomatch
Lemkin – Solitaire 9 (non iso)
LH5000
LH6000
Muller/Horsch – Drillmanager ME/v24
Quantron L
Quantron M
Quantron P
Raven 400/600
RDS/Sulky – Apollo, Artemis, Artemis Lite/IsoCan, Pro Series, Vision Can
Teagle/Tulip – Centerline
Techneat – Rate control
Transpread – 2020
Spreader Section Control
Bogballe Headland/SC Dynamic – Icon, Zurf Click here for kit
Kuhn/Rauch Varispread (4/8 Section) – Quantron A/E2 Click here for kit
Sprayer Section Control
Hardi – 5500/6500 controller (Advance GPS recommended) Click here for kit
