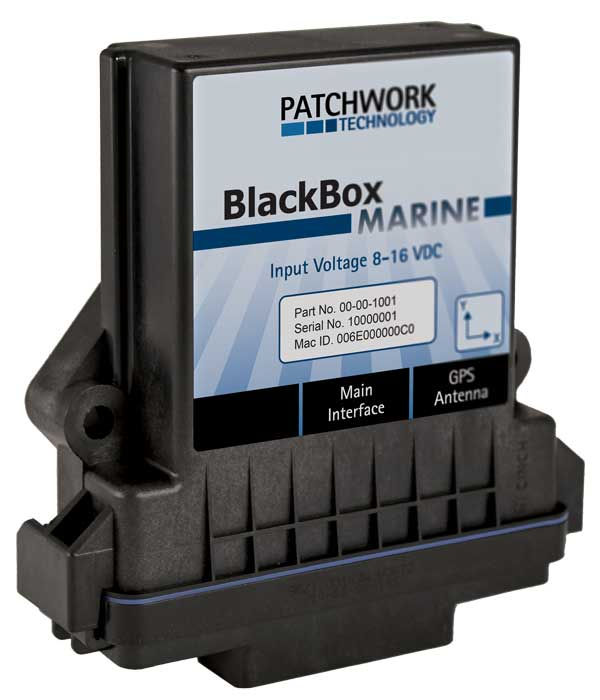

BlackBox Marine Soil Sampling Kit
The BlackBox Marine Soil Sampling Kit allows the system to be used for building sample maps that plot the locations that soil samples were taken. These sample maps are used with the soil sample chemical analyses to build recommendation plans to identify areas of the field that are depleted in nutrients.
Android OS Application
Area Measurement
Terrain Compensation
Bluetooth connectivity
Field boundary measurement and auto detection
Store Farm/Fields and Boundaries
Build Sample plans
Automatic sample grid creation
Easily Add, Move and Delete sample points
Pause and Resume multiple jobs
Synchronising of Data (3G and WiFi)
Operates from 12v vehicle power supply
USB port for charging device
Upgradable
Receiver (Standard R1)
10hz DGPS (WAAS, EGNOS and GLONASS)
Terrain Compensator
2 Axis
Power Input
8-16 VDC input
Bluetooth
2.0
USB charge port
5V 2A
Communication Ports
1x Can, 2x RS232, 1x USB
Control I/O
4x PWM, 1x Internal Relay, 1x Motor Controller
Sensor I/O
1x Pulse, 1x Switch, 1x Analogue 0-15v
Waterproof Level
IP67
Dimensions
135 x 130 x 39 mm
Weight
275g
5” Waterproof Android Tablet
A compact water proof Android device perfect for using with cab-less vehicles and Quad bikes. Supplied with all the accessories required to mount to your vehicle and charge the internal battery.
Features
5” Capacitive Touch Screen
854 x 480 Resolution
IPX7 Waterproof
4 Core 1.3GHz Processor
1 GB Ram
16 GB Internal Storage
Rechargable Li-Ion Battery
8” Tough Waterproof Android Tablet
A large display high performance Android tablet which incorporates a toughened glass screen as well as being water and dustproof. Supplied with all the accessories required to mount to your vehicle and charge the internal battery.
Features
8” Toughened Gorilla Glass Touch Screen
1280 x 800 Resolution
IP67 Waterproof
8 Core 1.4GHz Processor
3 GB Ram
32 GB Internal Storage
Rechargable Li-Ion Battery
Enhanced
The enhanced GPS package uses the standard R1 receiver and G2 hi-gain antenna. The improved filtering in the G2 antenna helps increase the overall signal accuracy and is recommended for more precise field work.
R1 + G2 = up to 15cm pass to pass accuracy
Advanced
The advanced GPS package uses the R2 receiver and G2 hi-gain antenna. The R2 is a high precision receiver that adds improved accuracy to the standard R1 and has an autonomous correction mode that ensures the best possible performance without paying for a subscription in areas with no free differential correction service e.g. Southern Hemisphere.
R2 + G2 = up to 10cm pass to pass accuracy
